You Are The BIOS Now: Building A Hypervisor In Rust With KVM
In todayâs episode of The Cursed Systems Programming Show⢠where the safety guarantees are fake and the unsafe blocks are real, weâre going to write âHello, World!â in the most cursed way imaginable.
Forget normal syscalls, letâs tap into something even scarier: x86âs virtual machine extensions and write a Type-II hypervisor in Rust.
There will be:
- No OS.
- Fake I/O ports.
- Just enough
unsafeto get audited by the compiler and possibly the IRS.
After all, this is systems programming, where the guest is real, the devices are imaginary, and the pain is shared.
Stepping Into The Singularity
Before we fire up the syringe with raw bytes and scream into fake hardware, we need to open a wormhole into the CPU itself, but not directly, because weâre a Type-II hypervisor living in user space.
Instead, we are going to summon the KVM: Linuxâs built-in virtualization layer.
KVM acts as a proxy between user space and a class of privileged instructions known as VMX (on Intel) or SVM (on AMD) without writing a kernel module, legally changing your name to /dev/mem or whispering âring zeroâ into a cold boot and hoping the kernel answers.
Once activated, the KVM throws your CPU into a parallel dimension where code thinks itâs running on bare metal, but youâre standing right beside it in user space intercepting its every move.
Some call it a sandbox, I call it a dream machine because once you step in, nothing is real. Youâre living in a byte-code black hole surrounded by warped spacetime, fake hardware, and the ghost of real-mode past.
Opening The Gates To Hell
At a high level, we summon the KVM by cracking open /dev/kvm and shouting ioctls at it until it is convinced our program is worthy of holding a VCPU file descriptor (VcpuFd).
A VCPU is a data structure and control loop managed by the KVM and represents one âcoreâ inside the virtual machine. You can think of it like hiring an unpaid intern to sit in user-space and hallucinate that itâs real hardware.
To keep things only moderately cursed, weâll use the kvm-ioctls crate to paper over some sharp edges and encapsulate everything into a struct called CursedVm
pub struct CursedVm {
vcpu: kvm_ioctls::VcpuFd,
...
}
impl CursedVm {
pub fn new() -> anyhow::Result<Self> {
// Open KVM
let kvm = Kvm::new()?;
// Create a VM
let vm = kvm.create_vm()?;
// Create VCPU
let vcpu = vm.create_vcpu(0)?;
// ...
let mut me = Self { vcpu, ... };
// ...
Ok(me)
}
}
With this short and simple snippet: The KVM has handed our hypervisor a VCPU which it can puppet from user space.
Thereâs just one problem: Our VM has no memory.
A VcpuFd gives our VM the illusion of power, but without memory, it is about as valuable as a half-charged vape with no idea how to segfault properly.
To fix that, weâll use mmap_anonymous to carve out a slab of page-aligned memory and then dress it up as âreal physical RAMâ by placing it inside a kvm_userspace_memory_region struct.
Once itâs in costume, we ioctl it over the KVM fence.
const GUEST_PHYS_ADDR: u64 = 0x1000;
const GUEST_SIZE: usize = 256 << 20;
pub struct CursedVm {
vcpu: kvm_ioctls::VcpuFd,
guest_mem: NonNull<c_void>,
}
impl CursedVm {
pub fn new() -> anyhow::Result<Self> {
// ... Get a VCPU ...
// Allocate guest memory
let guest_mem = unsafe {
mman::mmap_anonymous(
None,
GUEST_SIZE.try_into()?,
mman::ProtFlags::PROT_READ | mman::ProtFlags::PROT_WRITE,
mman::MapFlags::MAP_PRIVATE | mman::MapFlags::MAP_ANONYMOUS,
)?
};
// Set up memory region
let mem_region = kvm_bindings::kvm_userspace_memory_region {
guest_phys_addr: GUEST_PHYS_ADDR,
memory_size: GUEST_SIZE as u64,
userspace_addr: guest_mem.as_ptr() as u64,
..Default::default()
};
// ioctl it over the fence.
unsafe {
vm.set_user_memory_region(mem_region)?;
}
let mut me = Self { vcpu, guest_mem };
// ...
Ok(me)
}
}

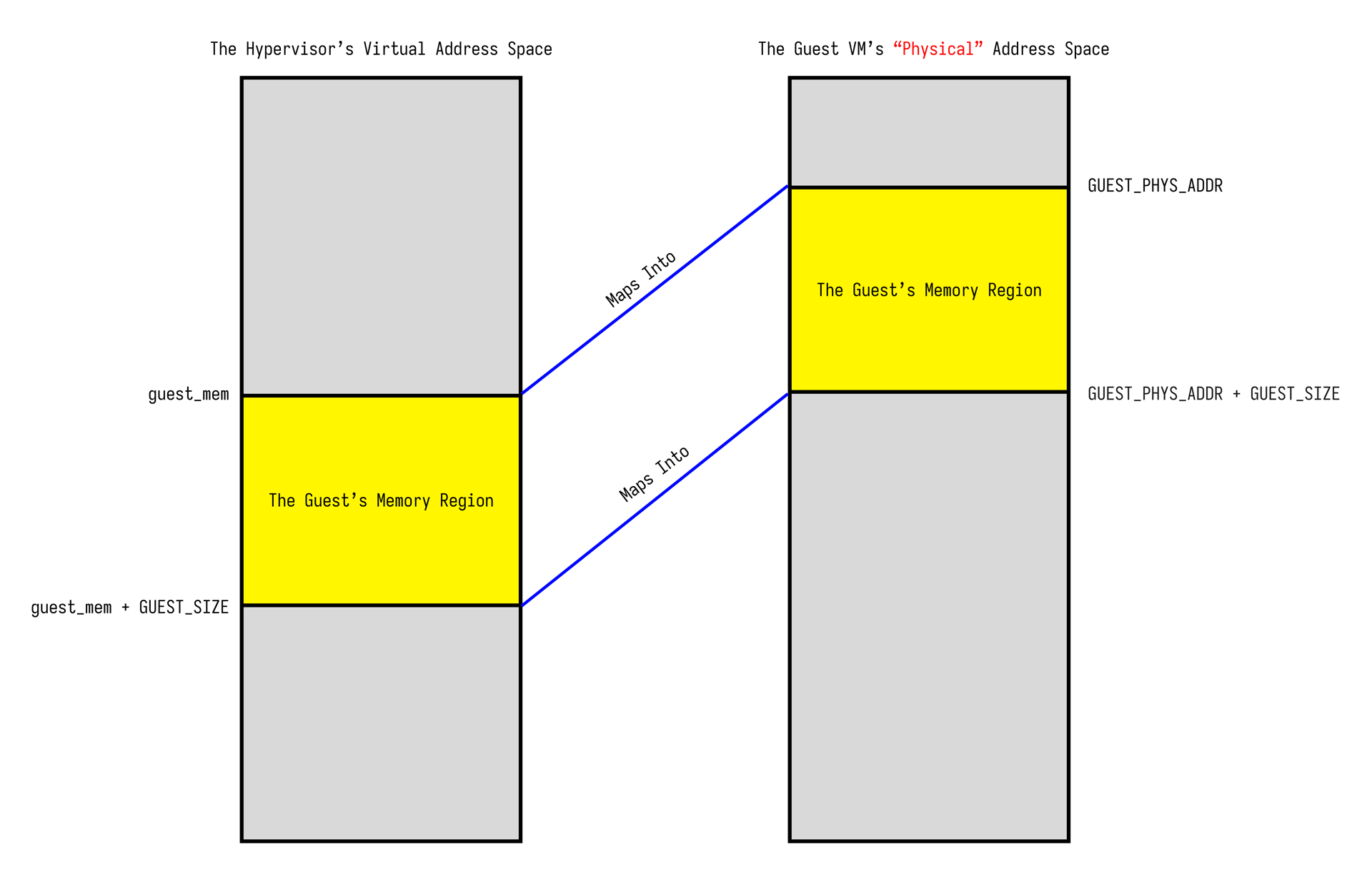

When we call vm.set_user_memory_region(mem_region) thatâs what gives the KVM the go ahead to wire that mapped region from our hypervisors virtual address space into the guestâs âphysicalâ address space. From the guestâs point of view, it looks like genuine RAM.
By now, we have duct-taped enough ioctls together where the VM has a CPU (sort of), memory (allegedly), and is ready to boot into something terrible.
Welcome to 1978: Real Mode Revival
One important thing to remember: When x86 wakes up, it thinks itâs still 1978.
It boots in real mode, a surreal 16-bit LARP where:
- Memory is limited to 1MB.
- Segmentation is king.
- And
jmp faris still a completely reasonable thing to do.
But unlike a real machine, our guest doesnât even get a BIOS to hold its hand. Thereâs no firmware, no boot-loader, no magic int $0x10 only lies and vmexits.
To snap our VM out of its nostalgic hallucination, we need to gently (read: violently, with a crowbar) shove it into a sane execution state.
That means manually:
- Copying code into guest memory and point
%ripat it. - Initializing the general purpose registers (
%rsp,%rbp, âŚ) - Enabling protected mode, PAE, and long mode via
%cr0,%cr4, and%efer - Filling in page tables
- And finally faking a global descriptor table (GDT) and initializing the segment selectors, because real mode still thinks segmentation is a foundational cosmic truth when in reality its just the asbestos of x86: we know itâs bad, but itâs everywhere, and removing it might actually make things worse.
Sanity is (mostly) restored with 3 CursedVm methods that run just before we hand ownership back to its caller.
impl CursedVm {
pub fn new() -> anyhow::Result<Self> {
// ... Get a VCPU and allocate / register guest memory ...
let mut me = Self { vcpu, guest_mem };
me.setup_long_mode()?;
me.map_pages()?;
me.init_registers()?;
Ok(me)
}
}
Entering Long Mode
Entering long mode from real mode is a bit like slapping around an analog TV hoping the picture finally stabilizes.
Thereâs no real BIOS or stage one boot loader, so it is entirely on us to convince the CPU that all the mandatory relics of the x86 boot process have somehow already happened.
We need to handcraft a GDT, populate the segment registers, and flip ancient flags inside of %cr0, %cr4, and %efer
const GUEST_PHYS_ADDR: u64 = 0x1000;
const GDT_OFFSET: usize = 0x0; // We just throw it at the start, but you can move it
impl CursedVM {
fn setup_long_mode(&mut self) -> anyhow::Result<()> {
// Get current special registers
let mut sregs = self.vcpu.get_sregs()?;
// Set up GDT for long mode
sregs.gdt.base = GUEST_PHYS_ADDR + GDT_OFFSET as u64;
sregs.gdt.limit = 23; // 3 entries * 8 bytes - 1
// Write GDT entries to guest memory
//
// Our VM is Ring-0 Only!
unsafe {
let gdt_ptr = self
.guest_mem
.as_ptr()
.add(GDT_OFFSET) as *mut u64;
// Null descriptor
*gdt_ptr.add(0) = 0x0000000000000000;
// Code segment (64-bit, executable, present)
*gdt_ptr.add(1) = 0x00209A0000000000;
// Data segment (64-bit, writable, present)
*gdt_ptr.add(2) = 0x0000920000000000;
}
// Configure code segment for long mode
sregs.cs.base = 0; // Base address for the segment (ignored in long mode)
sregs.cs.limit = 0xffffffff; // Limit (also ignored in long mode)
sregs.cs.selector = 1 << 3; // GDT index
sregs.cs.present = 1; // Segment is present
sregs.cs.type_ = 11; // Code: execute/read, accessed
sregs.cs.dpl = 0; // Descriptor privilege level (kernel ring 0)
sregs.cs.db = 0; // Must be 0 in long mode (64-bit code)
sregs.cs.s = 1; // Descriptor type: 1 = Code / Data (0 = system)
sregs.cs.l = 1; // Long mode active (64-bit segment)
sregs.cs.g = 1; // Granularity = 4 KB units (ignored in long mode, but set anyway)
// Configure data segments
sregs.ds.base = 0; // Base address for the segment (ignored in long mode)
sregs.ds.limit = 0xffffffff; // Limit (also ignored in long mode)
sregs.ds.selector = 2 << 3; // GDT index
sregs.ds.present = 1; // Segment is present
sregs.ds.type_ = 3; // Data: read/write, accessed
sregs.ds.dpl = 0; // Kernel mode
sregs.ds.db = 1; // 32-bit segment (ignored in 64-bit mode)
sregs.ds.s = 1; // Code/data segment
sregs.ds.g = 1; // Granularity = 4 KiB units
// Replicate for the other segments.
sregs.es = sregs.ds;
sregs.fs = sregs.ds;
sregs.gs = sregs.ds;
sregs.ss = sregs.ds;
// Enable long mode
sregs.efer |= 0x500; // LME (Long Mode Enable) + LMA (Long Mode Active)
sregs.cr0 |= 0x80000001; // PG (Paging) + PE (Protection Enable)
sregs.cr4 |= 0x20; // PAE (Physical Address Extension)
// Set special registers
self.vcpu.set_sregs(&sregs)?;
Ok(())
}
}
Mapping In Pages

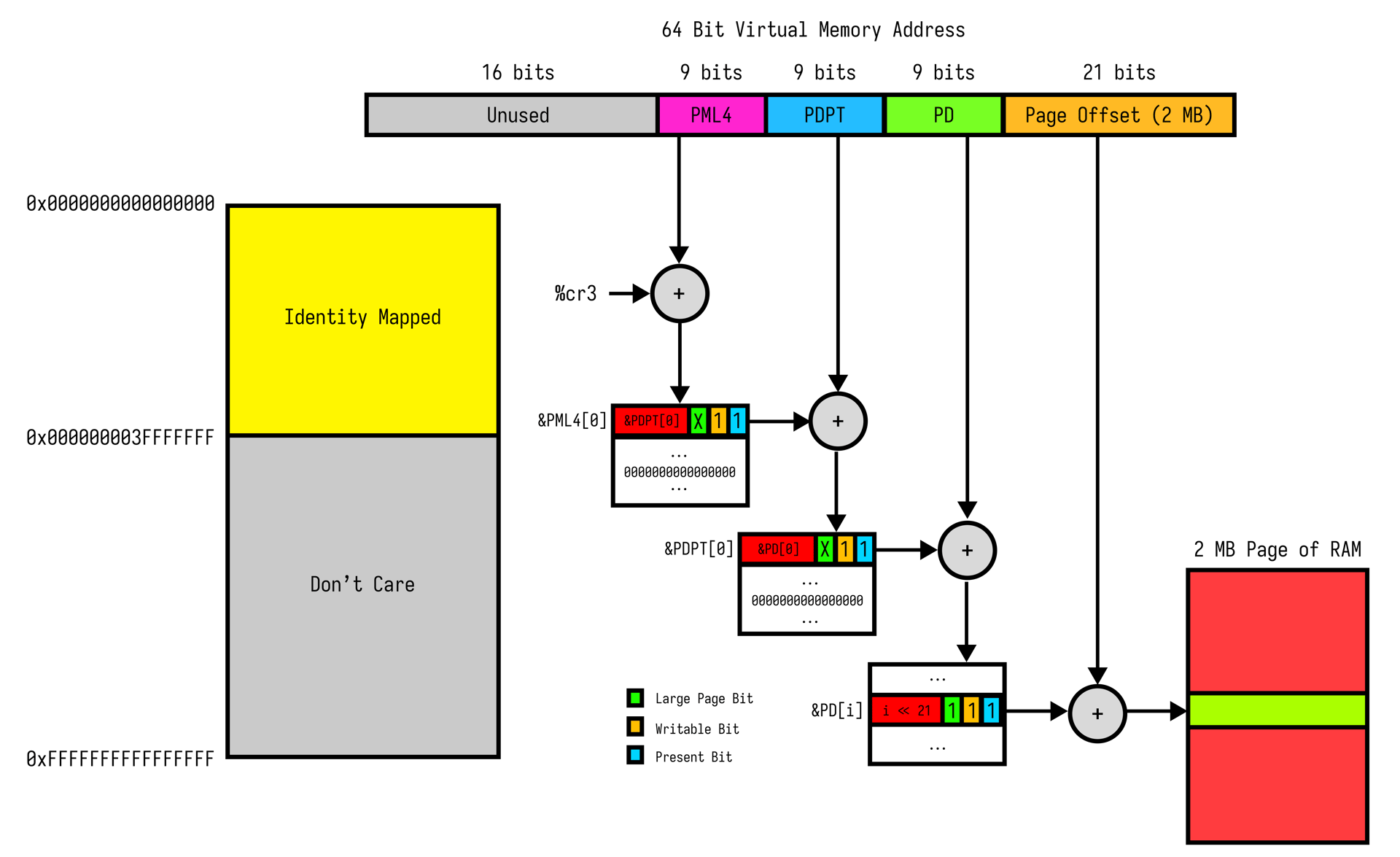

To keep things simple (and the memory management unit happy), we identity map the first 1âŻGB of guest memory using 2 MB large pages.
That means virtual addresses match physical addresses exactly. No translation needed.
Now the guest can touch the first gigabyte of RAM without spiraling into a triple fault.
const PML4_OFFSET: usize = 0x1000;
const PAGE_TABLE_SIZE: usize = 0x1000;
impl CursedVm {
fn map_pages(&mut self) -> anyhow::Result<()> {
unsafe {
// Zero out the entire area of memory.
ptr::write_bytes(self.guest_mem.as_ptr().add(PML4_OFFSET), 0, 3 * PAGE_TABLE_SIZE);
// PML4 entry - points to PDPT
let pml4 = self.guest_mem.as_ptr().add(PML4_OFFSET) as *mut u64;
// Present + Writable
*pml4 = (GUEST_PHYS_ADDR + PML4_OFFSET as u64 + PAGE_TABLE_SIZE as u64) | 0x3;
// PDPT entry - points to PD
let pdpt = self.guest_mem.as_ptr().add(PML4_OFFSET + PAGE_TABLE_SIZE) as *mut u64;
// Present + Writable
*pdpt = (GUEST_PHYS_ADDR + PML4_OFFSET as u64 + 2 * PAGE_TABLE_SIZE as u64) | 0x3;
let pd = self.guest_mem.as_ptr().add(PML4_OFFSET + 2 * PAGE_TABLE_SIZE) as *mut u64;
// Mark every entry in the page table as: Present + Writable + Large Page
(0..512).for_each(|i| *pd.add(i) = (i << 21) as u64 | 0x83);
}
// Set CR3 to point to PML4
let mut sregs = self.vcpu.get_sregs()?;
sregs.cr3 = GUEST_PHYS_ADDR + PML4_OFFSET as u64;
self.vcpu.set_sregs(&sregs)?;
Ok(())
}
}
Initializing The General Purpose Registers
Once we have finished gaslighting the hardware into thinking itâs modern:

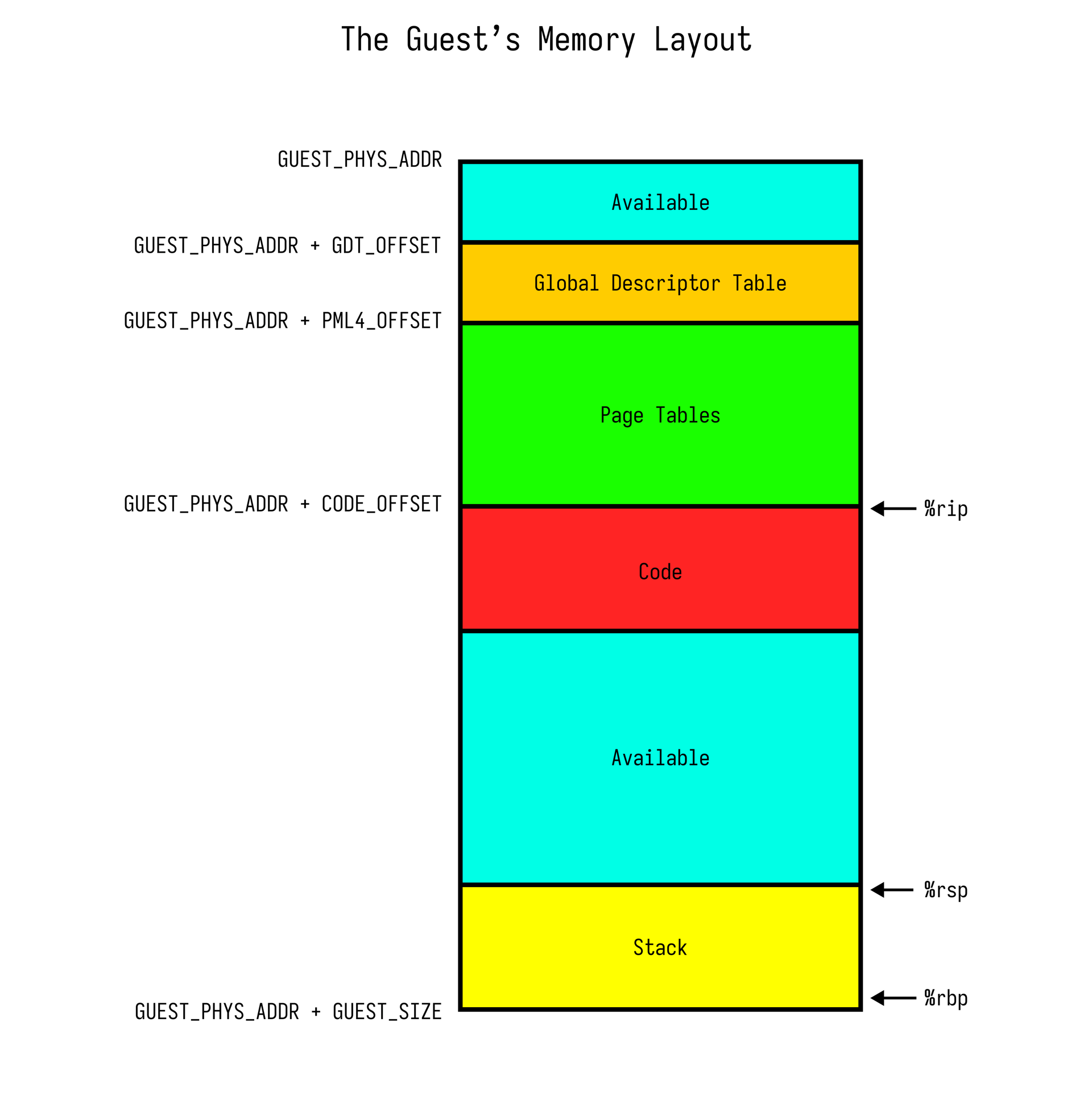

We initialize %rip , %rsp and %rbp and provide an interface for copying code into the guestâs address space.
const GUEST_PHYS_ADDR: u64 = 0x1000;
const GUEST_SIZE: usize = 256 << 20; // Needs to be enough to fit everything.
const GDT_OFFSET: usize = 0x0; // We just throw it at the start, but you can move it
const PML4_OFFSET: usize = 0x1000;
const PAGE_TABLE_SIZE: usize = 0x1000;
const PAGE_SIZE: usize = 1 << 21;
const CODE_OFFSET: usize = PML4_OFFSET + 3 * PAGE_TABLE_SIZE;
impl CursedVm {
fn init_registers(&mut self) -> anyhow::Result<()> {
let mut regs: kvm_bindings::kvm_regs = unsafe { mem::zeroed() };
// Set up the code's entrypoint and page align the stack.
regs.rip = GUEST_PHYS_ADDR + CODE_OFFSET as u64;
regs.rsp = (GUEST_PHYS_ADDR + GUEST_SIZE as u64) & !(PAGE_SIZE as u64 - 1);
regs.rbp = (GUEST_PHYS_ADDR + GUEST_SIZE as u64) & !(PAGE_SIZE as u64 - 1);
regs.rflags = 1 << 1; // Reserved bit that must be set
self.vcpu.set_regs(®s)?;
Ok(())
}
pub fn write_guest_code(&mut self, code: &[u8]) {
unsafe {
ptr::copy_nonoverlapping(
code.as_ptr(),
self.guest_mem.as_ptr().add(CODE_OFFSET) as *mut _,
code.len(),
);
}
}
}
Banging Your Head Against The Desk Until Something Happens
Armed with memory, registers, and a working illusion of modernity, our VM is finally ready to do something. But what?
How do we actually run the guest?
How do we catch it when it starts screaming through outb and realizes BIOS isnât coming to save it?
Enter: CursedVm::run_with_io_handler
impl CursedVm {
pub fn run_with_io_handler<F>(&mut self, mut io_handler: F) -> anyhow::Result<()>
where
F: FnMut(u16, &[u8]),
{
loop {
match self.vcpu.run()? {
VcpuExit::IoOut(port, data) => {
io_handler(port, data);
}
exit => {
return Err(anyhow::anyhow!("Unhandled exit reason: {:?}", exit));
}
}
}
}
}
This function kicks off the guestâs execution loop and listens for I/O exits, specifically out instructions which we treat as the guestâs only way of communicating with the outside world.
Think of I/O ports as x86âs equivalent of a tin can phone:
One end lives entirely inside the guestâs imagination, the other in our Rust hypervisor, bonded together by nothing but trust, ioctlâs, and the unresolved trauma of 1970s computer engineering decisions.
Terminal Illusions: Giving the Guest A Way To Cry For Help
Since thereâs no frame buffer, serial port, or syscalls, the only way our guest can speak to us is by pressing on a janky piano key labeled out $0x10 and hoping we hear it in user space.
use std::io;
use std::io::Write;
use std::sync::mpsc;
use std::thread;
mod vm;
fn main() -> anyhow::Result<()> {
let (tx, rx) = mpsc::channel();
ctrlc::set_handler(move || {
tx.send(()).ok();
})?;
// ... Obtain the guest code as a slice of bytes ...
thread::spawn(move || {
if let Ok(mut vm) = vm::CursedVm::new() {
vm.write_guest_code(&guest_code);
vm.run_with_io_handler(|port, data| {
if port == 0x10 && data.len() == 1 {
print!("{}", data[0] as char);
io::stdout().flush().ok();
}
})
.ok();
}
});
// Wait here until signal.
rx.recv().ok();
Ok(())
}
This whole I/O pipeline is less like hardware and more like a deranged group chat between the guest, the kernel, our hypervisor and its controlling tty
- Guest (đ§âđ): âAlright chat,
outb $0x48, $0x10" - KVM (đ§ą): (screeches in
vmexit) - Hypervisor (đŚ): "Ah yes, the olâ
outb 0x48 -> 0x10. Classic.â - TTY (đ¨): "A wild
'H'has appeared!"

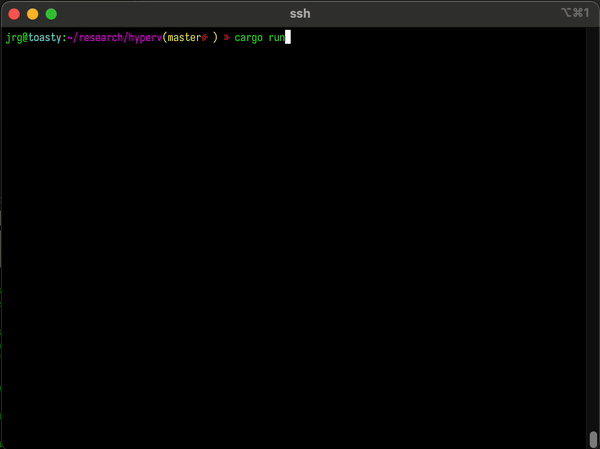

Saying âHello, World!â from the Abyss
Itâs time to inject some code and see if this cursed contraption can speak.
We could write a linker script and configure cargo to compile a proper binary then boot into something that resembles structure.
But letâs be real: Weâre past the point of âdoing it right.â
Instead weâll write a guest program, by hand, in raw x86-64 machine code.

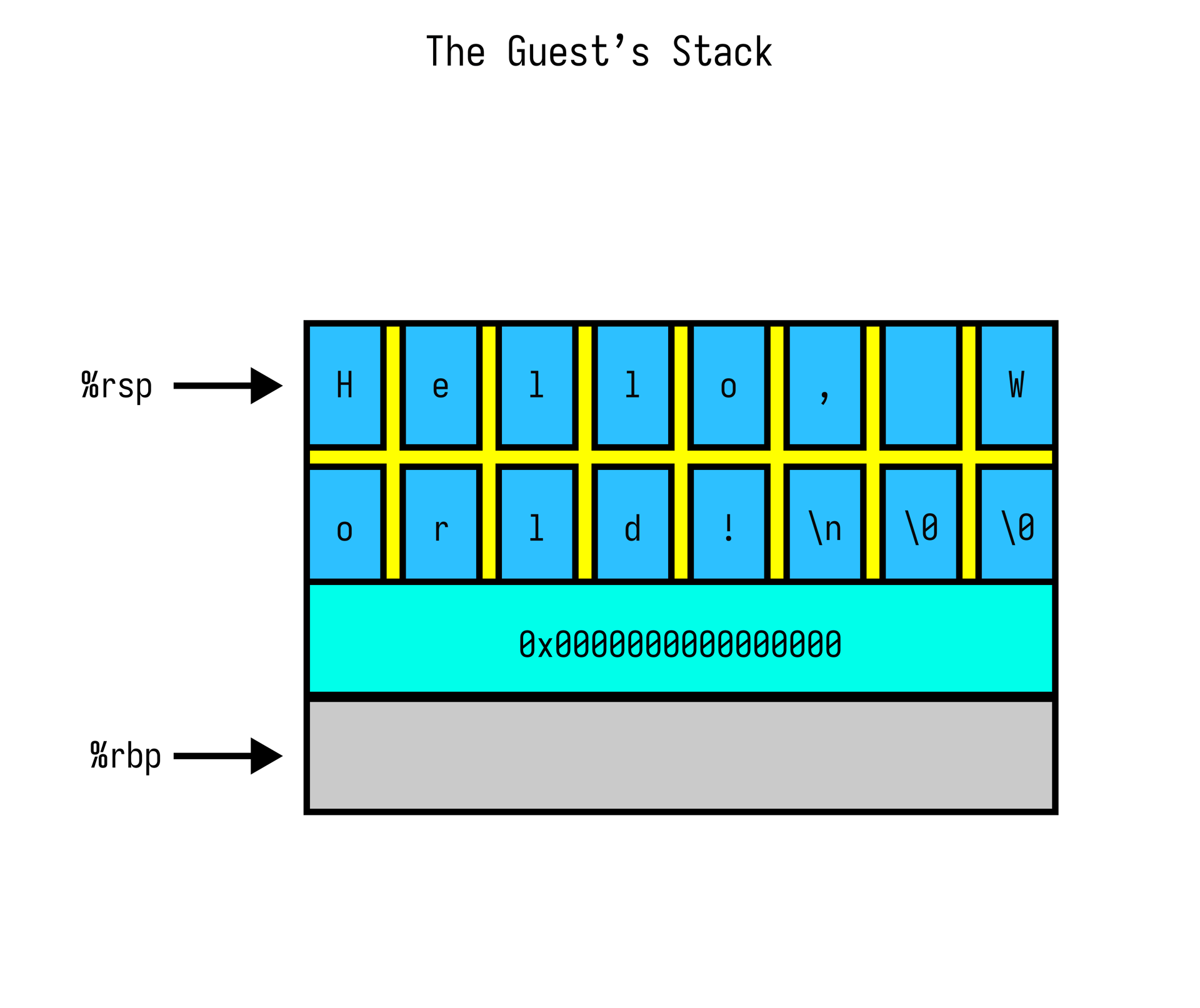

Our program will begin by pushing "Hello, World!\n\0\0" encoded as two 64-bit values 0x57202c6f6c6c6548 and 0x00000a21646c726f onto the guestâs stack to re-purpose it as a poor manâs .rodata
Once the data is on the stack, we point %rsi at %rsp, loop over the stack byte-by-byte, sending each character to I/O port 0x10 until we hit a NULL. Then we reset and do it again.
fn main() -> anyhow::Result<()> {
// ... Instantiate the VM and setup Ctrl+C to exit ...
// xor %rax, %rax ; Zero %rax (not necessary) [0x00]
// push %rax ; Pad the stack with zeros (not necessary) [0x03]
// mov $0x00000a21646c726f, %rax ; Load 'o', 'r', 'l', 'd', '!', '\n', '\0', '\0' [0x04]
// push %rax ; "orld\n\0\0" is now on the stack [0x0e]
// mov $0x57202c6f6c6c6548, %rbx ; Load 'H', 'e', 'l', 'l', 'o', ',', ' ', 'W' [0x0f]
// push %rbx ; "Hello, W" is now on the stack [0x19]
// mov %rsp, %rsi ; %rsi now points at the top of the stack [0x1a]
// .loop:
// mov (%rsi), %al ; Read a byte from %rsi [0x1d]
// test %al, %al ; Set the flags to test if its zero [0x1f]
// je .reset ; If it is zero we are done [0x21]
// out %al, $0x10 ; Write out the byte to I/O port 0x10 [0x23]
// inc %rsi ; Move %rsi to the next byte on the stack [0x25]
// jmp .loop ; Do it again [0x28]
// .reset
// mov %rsp, %rsi ; Reset %rsi to point back to the top of the stack [0x2a]
// jmp .loop [0x2d]
// nop ; For the purposes of %rip-relative offset calcs [0x2f]
let guest_code = [
0x48, 0x31, 0xc0, // [0x00]
0x50, // [0x03]
0x48, 0xb8, 0x6f, 0x72, 0x6c, 0x64, 0x21, 0x0a, 0x00, 0x00, // [0x04]
0x50, // [0x0e]
0x48, 0xbb, 0x48, 0x65, 0x6c, 0x6c, 0x6f, 0x2c, 0x20, 0x57, // [0x0f]
0x53, // [0x19]
0x48, 0x89, 0xe6, // [0x1a]
0x8a, 0x06, // [0x1d]
0x84, 0xc0, // [0x1f]
0x74, 0x07, // [0x21]
0xe6, 0x10, // [0x23]
0x48, 0xff, 0xc6, // [0x25]
0xeb, 0xf3, // [0x28]
0x48, 0x89, 0xe6, // [0x2a]
0xeb, 0xee, // [0x2d]
0x90, // [0x2f]
];
// ... The VM execution loop
}
This is the part where you realize: you now control your own parallel universe. From userspace. No kernel modules. No permissions. Just the green pastures of Ring-0, identity mapped virtual addresses, and the serene horror of knowing you are the BIOS now.
Measuring the Madness: Observability in the Void
At this point, thereâs only one reasonable thing left to do: Observe it.
Enter yeet: our extremely normal performance tool for extremely cursed software.
In just a few clicks and under 10 seconds of setup, we canâŚ

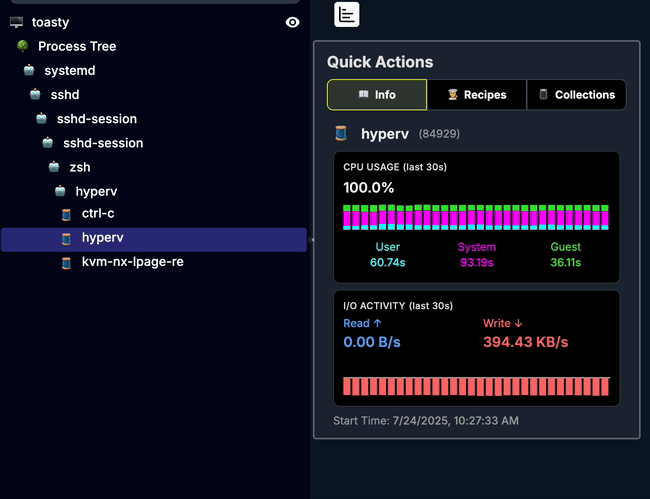

Inspect in real-time how long the CursedVm thread spent spinning in byte code hell

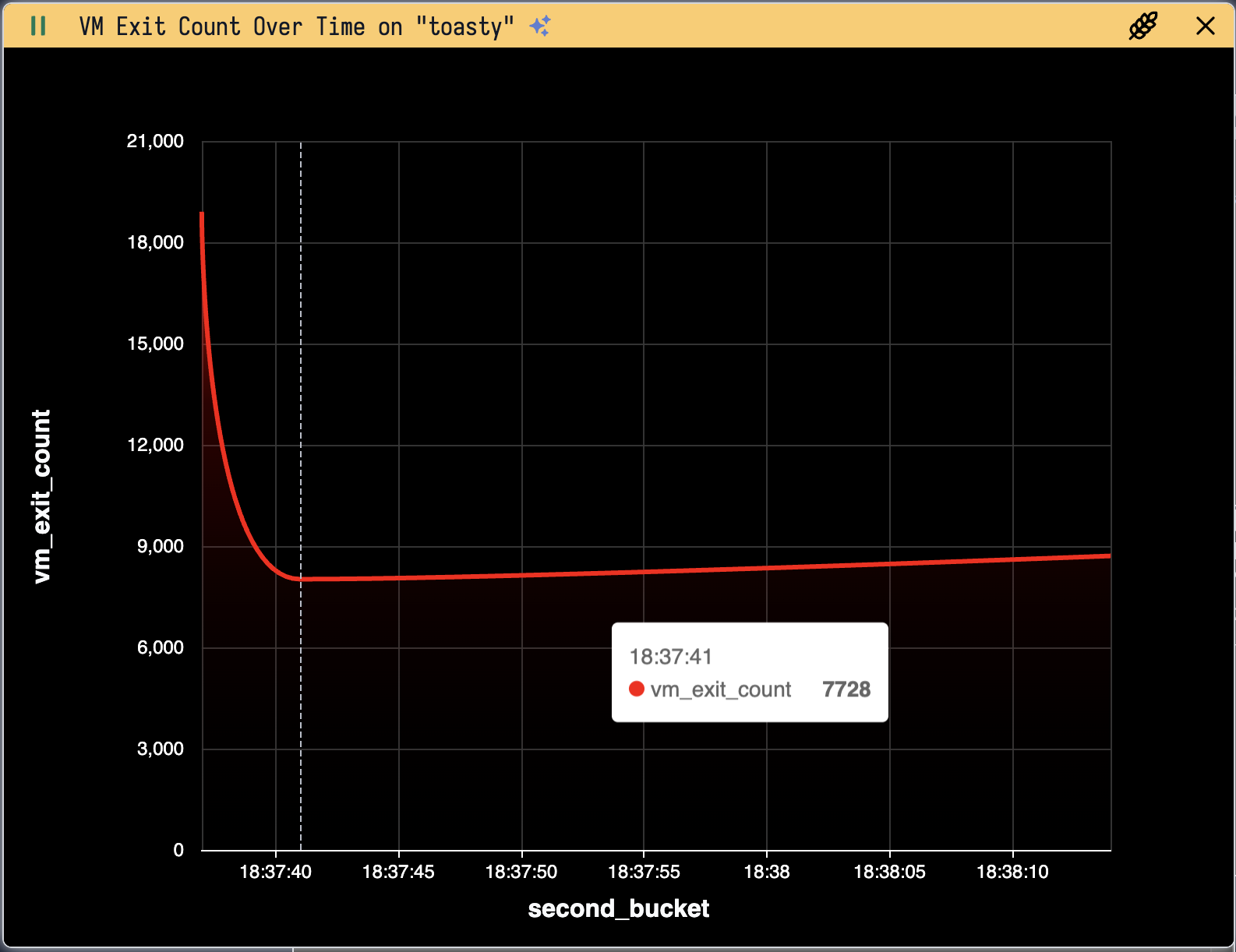

Write and deploy a custom bpf(2) program to visualize, in real time, the number of vmexits per second handled by the CursedVm thread, complete with an AI-generated-title.
You can check out more of our recipes here.
The End
If you made it this far: congratulations, youâre now legally 5% VcpuFd and 95% unsafe. Take a nap, hydrate, and maybe donât open /dev/kvm again without supervision.
Or do. Iâm not your kernel.
Appendix
main.rs
use std::io;
use std::io::Write;
use std::sync::mpsc;
use std::thread;
mod vm;
fn main() -> anyhow::Result<()> {
let (tx, rx) = mpsc::channel();
ctrlc::set_handler(move || {
tx.send(()).ok();
})?;
// xor %rax, %rax ; Zero %rax (not necessary) [0x00]
// push %rax ; Pad the stack with zeros (not necessary) [0x03]
// mov $0x00000a21646c726f, %rax ; Load 'o', 'r', 'l', 'd', '!', '\n', '\0', '\0' [0x04]
// push %rax ; "orld\n\0\0" is now on the stack [0x0e]
// mov $0x57202c6f6c6c6548, %rbx ; Load 'H', 'e', 'l', 'l', 'o', ',', ' ', 'W' [0x0f]
// push %rbx ; "Hello, W" is now on the stack [0x19]
// mov %rsp, %rsi ; %rsi now points at the top of the stack [0x1a]
// .loop:
// mov (%rsi), %al ; Read a byte from %rsi [0x1d]
// test %al, %al ; Set the flags to test if its zero [0x1f]
// je .reset ; If it is zero we are done [0x21]
// out %al, $0x10 ; Write out the byte to I/O port 0x10 [0x23]
// inc %rsi ; Move %rsi to the next byte on the stack [0x25]
// jmp .loop ; Do it again [0x28]
// .reset
// mov %rsp, %rsi ; Reset %rsi to point back to the top of the stack [0x2a]
// jmp .loop [0x2d]
// nop ; For the purposes of %rip-relative offset calcs [0x2f]
let guest_code = [
0x48, 0x31, 0xc0, // [0x00]
0x50, // [0x03]
0x48, 0xb8, 0x6f, 0x72, 0x6c, 0x64, 0x21, 0x0a, 0x00, 0x00, // [0x04]
0x50, // [0x0e]
0x48, 0xbb, 0x48, 0x65, 0x6c, 0x6c, 0x6f, 0x2c, 0x20, 0x57, // [0x0f]
0x53, // [0x19]
0x48, 0x89, 0xe6, // [0x1a]
0x8a, 0x06, // [0x1d]
0x84, 0xc0, // [0x1f]
0x74, 0x07, // [0x21]
0xe6, 0x10, // [0x23]
0x48, 0xff, 0xc6, // [0x25]
0xeb, 0xf3, // [0x28]
0x48, 0x89, 0xe6, // [0x2a]
0xeb, 0xee, // [0x2d]
0x90, // [0x2f]
];
thread::spawn(move || {
if let Ok(mut vm) = vm::CursedVm::new() {
vm.write_guest_code(&guest_code);
vm.run_with_io_handler(|port, data| {
if port == 0x10 && data.len() == 1 {
print!("{}", data[0] as char);
io::stdout().flush().ok();
}
})
.ok();
}
});
// Wait here until signal.
rx.recv().ok();
Ok(())
}
vm.rs
use kvm_ioctls::{Kvm, VcpuExit};
use nix::sys::mman;
use std::ffi::c_void;
use std::mem;
use std::ptr::{self, NonNull};
const GUEST_PHYS_ADDR: u64 = 0x1000;
const GUEST_SIZE: usize = 256 << 20;
const GDT_OFFSET: usize = 0x0;
const PML4_OFFSET: usize = 0x1000;
const PAGE_TABLE_SIZE: usize = 0x1000;
const PAGE_SIZE: usize = 1 << 21;
const CODE_OFFSET: usize = PML4_OFFSET + (3 * PAGE_TABLE_SIZE);
/* Guest Memory Layout:
*
* GUEST_PHYS_ADDR --> +-------------------------+
* | Available |
* + GDT_OFFSET --> +-------------------------+
* | Global Descriptor Table |
* + PML4_OFFSET --> +-------------------------+
* | |
* | Page Tables |
* | |
* + CODE_OFFSET --> +-------------------------+ <-- %rip
* | |
* | Code |
* | |
* +-------------------------+
* | |
* | |
* | Available |
* | |
* | |
* +-------------------------+ <-- %rsp
* | |
* | Stack |
* | |
* + GUEST_SIZE --> +-------------------------+ <-- %rbp
*/
pub struct CursedVm {
vcpu: kvm_ioctls::VcpuFd,
guest_mem: NonNull<c_void>,
}
impl CursedVm {
pub fn new() -> anyhow::Result<Self> {
// Open KVM
let kvm = Kvm::new()?;
// Create VM
let vm = kvm.create_vm()?;
// Create VCPU
let vcpu = vm.create_vcpu(0)?;
// Allocate guest memory
let guest_mem = unsafe {
mman::mmap_anonymous(
None,
GUEST_SIZE.try_into()?,
mman::ProtFlags::PROT_READ | mman::ProtFlags::PROT_WRITE,
mman::MapFlags::MAP_PRIVATE | mman::MapFlags::MAP_ANONYMOUS,
)?
};
// Set up memory region
let mem_region = kvm_bindings::kvm_userspace_memory_region {
guest_phys_addr: GUEST_PHYS_ADDR,
memory_size: GUEST_SIZE as u64,
userspace_addr: guest_mem.as_ptr() as u64,
..Default::default()
};
unsafe {
vm.set_user_memory_region(mem_region)?;
}
let mut me = Self { vcpu, guest_mem };
me.setup_long_mode()?;
me.map_pages()?;
me.init_registers()?;
Ok(me)
}
fn setup_long_mode(&mut self) -> anyhow::Result<()> {
// Get current special registers
let mut sregs = self.vcpu.get_sregs()?;
// Set up GDT for long mode
sregs.gdt.base = GUEST_PHYS_ADDR + GDT_OFFSET as u64;
sregs.gdt.limit = 23; // 3 entries * 8 bytes - 1
// Write GDT entries to guest memory
//
// Our VM is Ring-0 Only!
unsafe {
let gdt_ptr = self.guest_mem.as_ptr().add(GDT_OFFSET) as *mut u64;
// Null descriptor
*gdt_ptr.add(0) = 0x0000000000000000;
// Code segment (64-bit, executable, present)
*gdt_ptr.add(1) = 0x00209A0000000000;
// Data segment (64-bit, writable, present)
*gdt_ptr.add(2) = 0x0000920000000000;
}
// Configure code segment for long mode
sregs.cs.base = 0; // Base address for the segment (ignored in long mode)
sregs.cs.limit = 0xffffffff; // Limit (also ignored in long mode)
sregs.cs.selector = 1 << 3; // GDT index
sregs.cs.present = 1; // Segment is present
sregs.cs.type_ = 11; // Code: execute/read, accessed
sregs.cs.dpl = 0; // Descriptor privilege level (kernel ring 0)
sregs.cs.db = 0; // Must be 0 in long mode (64-bit code)
sregs.cs.s = 1; // Descriptor type: 1 = Code / Data (0 = system)
sregs.cs.l = 1; // Long mode active (64-bit segment)
sregs.cs.g = 1; // Granularity = 4 KB units (ignored in long mode, but set anyway)
// Configure data segments
sregs.ds.base = 0; // Base address for the segment (ignored in long mode)
sregs.ds.limit = 0xffffffff; // Limit (also ignored in long mode)
sregs.ds.selector = 2 << 3; // GDT index
sregs.ds.present = 1; // Segment is present
sregs.ds.type_ = 3; // Data: read/write, accessed
sregs.ds.dpl = 0; // Kernel mode
sregs.ds.db = 1; // 32-bit segment (ignored in 64-bit mode)
sregs.ds.s = 1; // Code/data segment
sregs.ds.g = 1; // Granularity = 4 KiB units
// Replicate for the other segments.
sregs.es = sregs.ds;
sregs.fs = sregs.ds;
sregs.gs = sregs.ds;
sregs.ss = sregs.ds;
// Enable long mode
sregs.efer |= 0x500; // LME (Long Mode Enable) + LMA (Long Mode Active)
sregs.cr0 |= 0x80000001; // PG (Paging) + PE (Protection Enable)
sregs.cr4 |= 0x20; // PAE (Physical Address Extension)
// Set special registers
self.vcpu.set_sregs(&sregs)?;
Ok(())
}
fn map_pages(&mut self) -> anyhow::Result<()> {
/* We are going to layout the guest's memory map in the following way:
*
* 0x0000000000000000 +-------------------+
* | |
* | Identity Mapped |
* | |
* 0x000000003FFFFFFF +-------------------+
* | |
* | |
* | |
* | Don't Care |
* | |
* | |
* | |
* 0xFFFFFFFFFFFFFFFF +-------------------+
*
* We will use large pages (2 MB) so 64-bit virtual addresses will
* be segmented like so:
*
* +------------+------------+------------+------------------------------+
* |-- 9 bits --|-- 9 bits --|-- 9 bits --|----------- 21 bits ----------|
* +------------+------------+------------+------------------------------+
* | PML4 | PDPT | PD | Page Offset (2 MB) |
* +------------+------------+------------+------------------------------+
*
* This configuration will simplify things a bit, given that there is currently
* no operating system that would otherwise manage it.
*
* L WP
* +----------------+
* %cr3 -> &PML4[0] | &PDPT[0] |X|11| ---+
* +----------------+ |
* &PML4[1..] |0000000000000000| |
* +----------------+ |
* &PDPT[0] +-- | &PD[0] |X|11| <--+
* | +----------------+
* | |0000000000000000| &PDPT[1..]
* | +----------------+
* +-> | i << 21 |1|11| &PD[i] --> The Memory Page
* +----------------+
*
* L = Large Page Bit
* W = Writable
* P = Present
*/
unsafe {
// Zero out the entire area of memory.
ptr::write_bytes(
self.guest_mem.as_ptr().add(PML4_OFFSET),
0,
3 * PAGE_TABLE_SIZE,
);
// PML4 entry - points to PDPT
let pml4 = self.guest_mem.as_ptr().add(PML4_OFFSET) as *mut u64;
// Present + Writable
*pml4 = (GUEST_PHYS_ADDR + PML4_OFFSET as u64 + PAGE_TABLE_SIZE as u64) | 0x3;
// PDPT entry - points to PD
let pdpt = self.guest_mem.as_ptr().add(PML4_OFFSET + PAGE_TABLE_SIZE) as *mut u64;
// Present + Writable
*pdpt = (GUEST_PHYS_ADDR + PML4_OFFSET as u64 + 2 * PAGE_TABLE_SIZE as u64) | 0x3;
let pd = self
.guest_mem
.as_ptr()
.add(PML4_OFFSET + 2 * PAGE_TABLE_SIZE) as *mut u64;
// Mark every entry in the page table as: Present + Writable + Large Page
(0..512).for_each(|i| *pd.add(i) = (i << 21) as u64 | 0x83);
}
// Set CR3 to point to PML4
let mut sregs = self.vcpu.get_sregs()?;
sregs.cr3 = GUEST_PHYS_ADDR + PML4_OFFSET as u64;
self.vcpu.set_sregs(&sregs)?;
Ok(())
}
fn init_registers(&mut self) -> anyhow::Result<()> {
let mut regs: kvm_bindings::kvm_regs = unsafe { mem::zeroed() };
// Set up the code's entrypoint and page align the stack.
regs.rip = GUEST_PHYS_ADDR + CODE_OFFSET as u64;
regs.rsp = (GUEST_PHYS_ADDR + GUEST_SIZE as u64) & !(PAGE_SIZE as u64 - 1);
regs.rbp = (GUEST_PHYS_ADDR + GUEST_SIZE as u64) & !(PAGE_SIZE as u64 - 1);
regs.rflags = 1 << 1; // Reserved bit that must be set
self.vcpu.set_regs(®s)?;
Ok(())
}
pub fn run_with_io_handler<F>(&mut self, mut io_handler: F) -> anyhow::Result<()>
where
F: FnMut(u16, &[u8]),
{
loop {
match self.vcpu.run()? {
VcpuExit::IoOut(port, data) => {
io_handler(port, data);
}
exit => {
return Err(anyhow::anyhow!("Unhandled exit reason: {:?}", exit));
}
}
}
}
pub fn write_guest_code(&mut self, code: &[u8]) {
unsafe {
ptr::copy_nonoverlapping(
code.as_ptr(),
self.guest_mem.as_ptr().add(CODE_OFFSET) as *mut _,
code.len(),
);
}
}
}
impl Drop for CursedVm {
fn drop(&mut self) {
unsafe {
mman::munmap(
NonNull::new_unchecked(self.guest_mem.as_ptr() as *mut _),
GUEST_SIZE,
)
.ok();
}
}
}
Cargo.toml
[package]
name = "hyperv"
version = "0.1.0"
edition = "2024"
[dependencies]
anyhow = "1.0.98"
ctrlc = "3.4.7"
kvm-bindings = "0.13.0"
kvm-ioctls = "0.23.0"
nix = { version = "0.30.1", features = ["fs", "mman"] }
